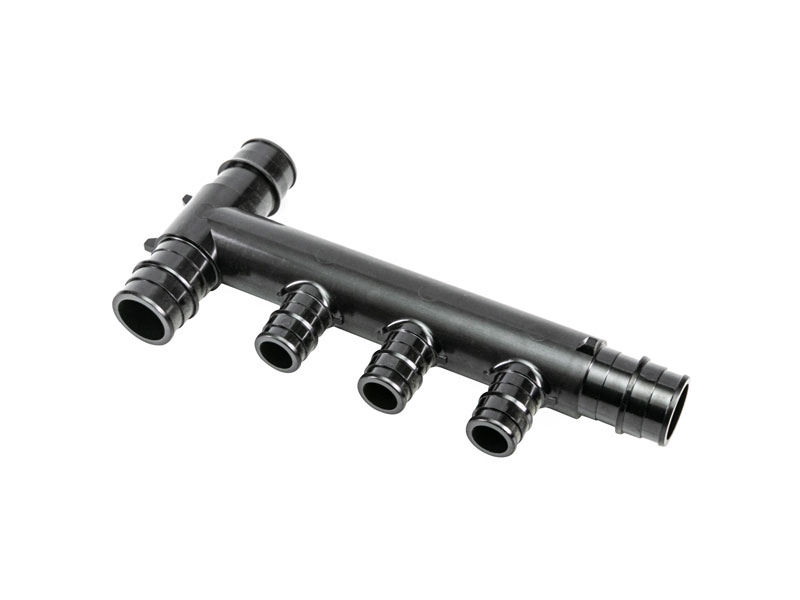

A multiport vertical tee is a type of pipe fitting that is used to distribute fluids or gases in vertical plumbing systems. It is similar to a standard multiport tee, but it is designed for use in applications where the main pipe is oriented vertically.
The multiport vertical tee typically has one inlet port and multiple outlet ports, with each outlet port connected to a branch pipe. This allows for the main flow to be split into multiple directions, with each branch receiving a portion of the flow. The tee is often used in applications where it is necessary to supply fluids or gases to multiple levels of a building or system.
Multiport vertical tees are available in a variety of materials, such as PVC, copper, or stainless steel, depending on the specific application and the fluid or gas being transported. They are also available in different sizes and configurations to accommodate different pipe diameters and flow rates.
Proper installation and maintenance of multiport vertical tees is crucial to ensure the safe and efficient operation of the plumbing system. They should be installed in accordance with local plumbing codes and regulations, and regular inspections and cleaning should be performed to prevent blockages or leaks in the system.
The characteristics of a multiport vertical tee are similar to those of a standard multiport tee, with some additional considerations due to its vertical orientation. Some of the key characteristics of a multiport vertical tee include:
Vertical orientation: As the name suggests, the multiport vertical tee is designed for use in vertical plumbing systems, with the main pipe oriented vertically and the branch pipes extending horizontally.
Multiple ports: The tee has one inlet port and multiple outlet ports, which allows for the distribution of fluid or gas in multiple directions.
Versatility: Multiport vertical tees are available in a range of materials and sizes, making them versatile and adaptable to different plumbing systems.
Durability: Like standard multiport tees, multiport vertical tees are typically made from durable materials such as PVC, copper, or stainless steel, which provide resistance to corrosion and wear.
Easy to install: These fittings can be installed using standard plumbing techniques and tools, although additional care may be required during installation due to their vertical orientation.
Maintenance: Proper maintenance of multiport vertical tees is important to ensure the continued safe and efficient operation of the plumbing system. Regular inspections and cleaning can help prevent blockages or leaks in the system.
There are several types of multiport vertical tee available for use in plumbing systems. The most common types include:
Equal Multiport Vertical Tee: This type of tee has multiple ports of equal size, making it suitable for applications where the flow rate is equal in all directions.
Reducing Multiport Vertical Tee: This type of tee has one inlet port and multiple outlet ports of different sizes, allowing for the distribution of fluid or gas in different quantities to each branch.
Cross Multiport Vertical Tee: This type of tee has four ports arranged in a cross shape, making it suitable for applications where the flow rate needs to be distributed in multiple directions.
Lateral Multiport Vertical Tee: This type of tee has a main inlet port and two outlet ports that are perpendicular to the main branch. This is often used in plumbing systems where pipes need to be connected at a right angle.
Y-Branch Multiport Vertical Tee: This type of tee has a main branch and two smaller branches that are angled at 45 degrees to the main branch. This is commonly used for applications where the branches need to be directed at a specific angle.
